Price is for 1 truck, add 2 to the cart for a set of trucks (2 trucks)

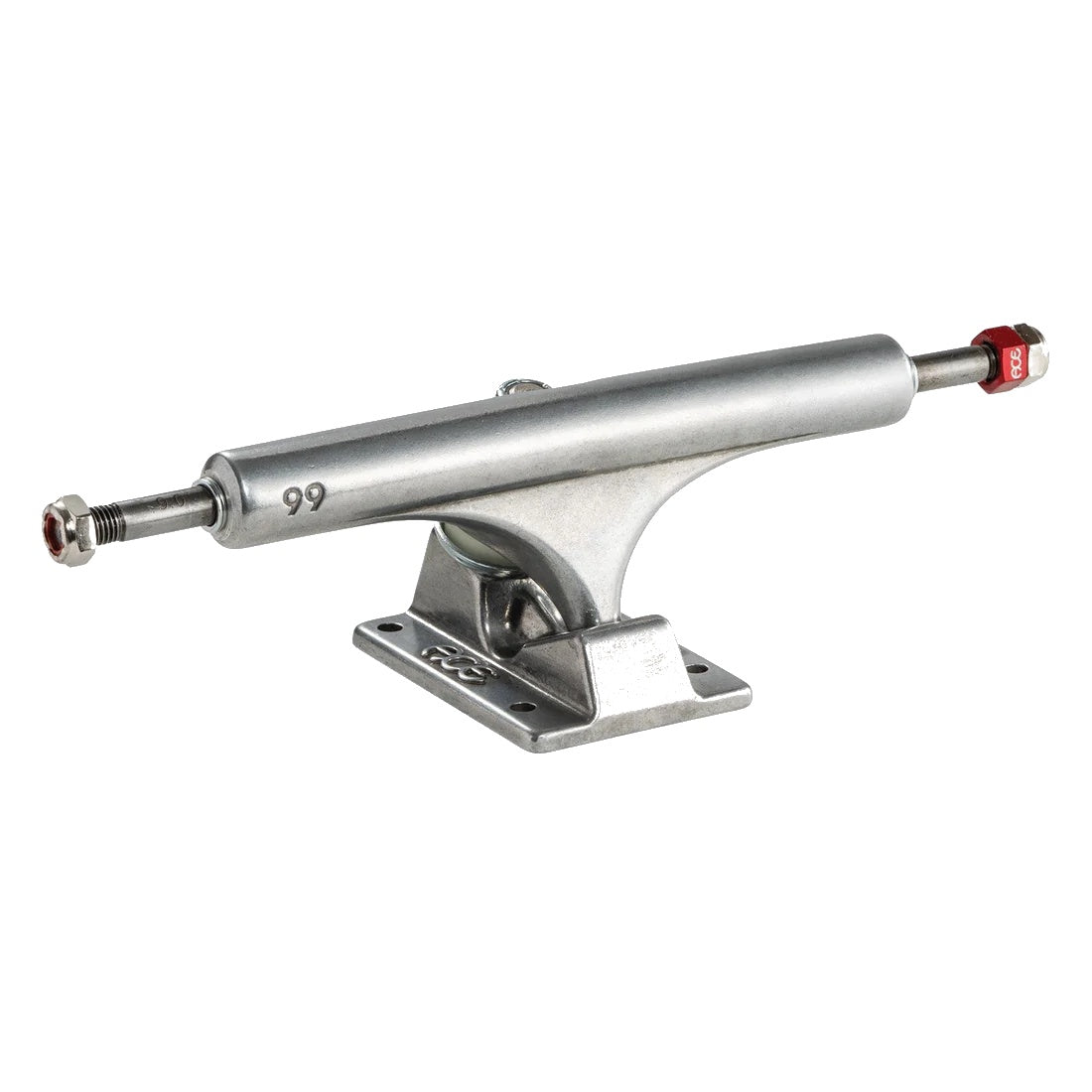

The all-new ACE AF1 features game-changing performance without deviating from the original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. Ace updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.
Hanger width: 6.4” (163mm)
Truck height: 2.1” (53mm)
Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
True T6 heat-treated baseplates and hangers
SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
Patent pending rethreading axle nuts - no more damaged axle ends!
Durable Hand-poured 96a urethane pivot bushings for better response.
Refined suspension for a cleaner turn.
Top Bushing: 12mm tall | 91a hardness
Bottom Bushing: Bottom 14mm tall | 86a hardness •
Machine-faced hanger ends for precise bearing contact.
